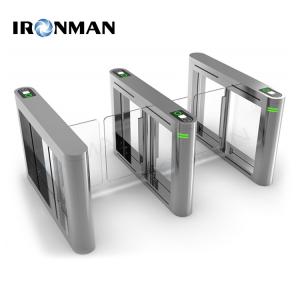

Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas

Name: Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas
Brand: Ironman
Price: 1 USD

Quality Swing Arm Fastlane Speed Gates Ensures Smooth Entry In Busy Pedestrian Areas wholesale

Brand Name : Ironman

Model Number : IM.ST601

Certification : CE; FCC; ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 2000 pc per/month

Delivery Time : 8-15 work days

Packaging Details : carton packing

Name : Speed Gate Turnstile

Material : SUS304 Stainless Steel

Swing Arm Material : AC110~220V±10V

Control Input : Dry contact/relay signal

Working Environment : indoor/outdoor ; Working Temperature：－30℃～+70℃；

Alarm function : with sound and light alarm function

Housing Material : AISI SUS304

Application : Office Buildings / Hotels

Contact Now

IM.ST601 Speed Tursntile

Product Specifications of (IM.ST601) Speed Gate
Product Parameters	Dimensions	1600100980MM	Material:	Housing: Corrosion Resistant Electrolytic Plate 2.0mm Top Cover: Cast aluminum alloy 10mm Column:Cast aluminum alloy 3mm
	Baffle Wing Material:	Transparent Acrylic；T=10MM	Surface:	Column:Corrosion resistant electrolytic plate black matte baking paint Cover and column: Aluminum alloy oxidation
Technical Parameters	◆Housing Material: Aluminum alloy mold opening: top cover 10mm ;column 3mm thick; Baking paint frame thickness: 2mm ◆Input voltage: AC110~220V±10% ,50Hz ◆Opening Method:RS485/RS232/IO ◆EMC Standard:Antistatic level 3,Air discharge 15KV ◆Lightning Protection: 2KV ◆Motor: servo motor, High precision clutch movement ◆Working Temperature:-20℃～75℃ ◆Relative Humidity:0～90%(non-condensing) ◆Opening Speed:＜0.5S(adjustable) ◆Passing Time:Swipe the traffic card time:10S(If no one passes within 10S: the gate closes automatically, and the time can be adjusted as needed)
Function parameter	Basic Function	●Sound alarm:it has the function of breaking in / trailing/ stop/ reverse pass sound alarm function;
		●Ilight alarm function: light alarm with red, blue, and green color;
		●Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors;
		●Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set on the main control panel;
		●Anti tailing: prevent the unauthorized situation of too many people passing at one time;
		●Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal;
		●Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set on the motherboard;
		●Access control: The ports can connect to a variety of biometric devices;
		●Power off and opening: the gate will opens after power off, and the opening direction can be set;
		●Fault detection:Control board can support fault type detection, assist in analyzing the causes of faults and handling faults and abnormalities;
		●Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel.

Features:

1. The turnstile provides control access smoothly and effectively by basic operation,and also prevent illegal in and out.The machine is well in design,rustproof,durable and can resist external destroy.

2. Turnstile offer a compact, cost-effective, fast operating, easy to use, reliable entrance solution for internal or external use in areas where there is a large and constant flow of people.

The advantages of using a turnstile compared to a conventional gate include the better utilization of manpower, increased reliability and improved security.

Application:

high-end factory parks

higher schools

hospitals

enterprises and institutions

government halls

sports venues

convention and exhibition centers;
